音视频：18.FFmpeg-OpenGL朋友圈录制视频

具体代码请看：NDKPractice项目的ffmpeg88livepush

1.OpenGL渲染流程介绍

怎么渲染一张图片：

1. 继承GLSurfaceView
2. 继承GLSurfaceView.Renderer
3. 写顶点和纹理渲染的代码
4. 编译链接生成程序
5. 生成加载 bitmap 的纹理
6. 绘制到屏幕

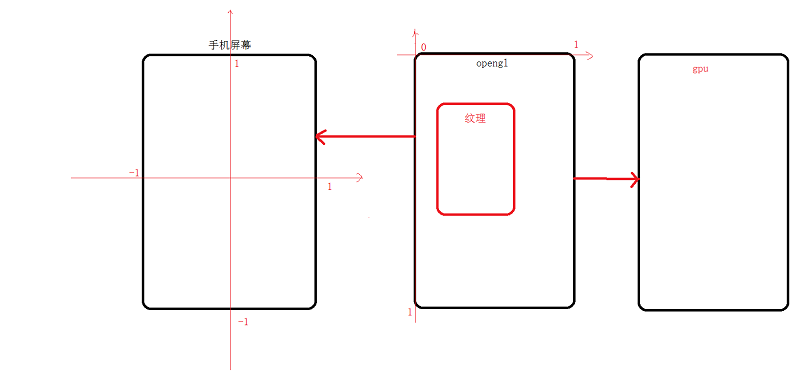

介绍一下纹理坐标系：

/**
 * 顶点坐标
 */
private float[] mVertexCoordinate = new float[]{
        -1f, -1f, // 左下角
        1f, -1f,  // 右下角
        -1f, 1f,  // 左上角
        1f, 1f    // 右上角
};
private FloatBuffer mVertexBuffer;

/**
 * 纹理坐标(对应全屏)
 */
private float[] mFragmentCoordinate = new float[]{
        0f, 1f,
        1f, 1f,
        0f, 0f,
        1f, 0f
};

/**
 * 纹理坐标(对应半屏)
 */
private float[] mFragmentCoordinate = new float[]{
        0f, 0.5f,
        1f, 0.5f,
        0f, 0f,
        1f, 0f
};

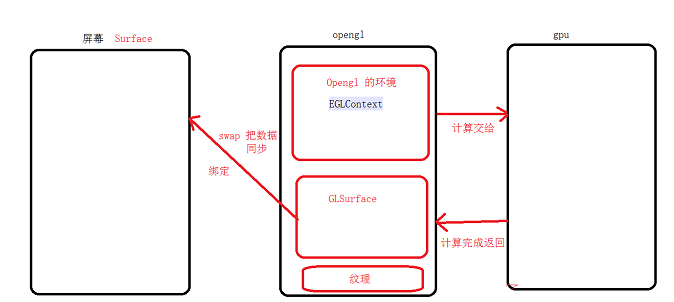

右边是OpenGL的渲染流程：

2.OpenGL渲染摄像头数据

/**
 * 初始化视频的 MediaCodec
 *
 * @param width
 * @param height
 */
private void initVideoCodec(int width, int height) throws IOException {
    MediaFormat videoFormat = MediaFormat.createVideoFormat(MediaFormat.MIMETYPE_VIDEO_AVC, width, height);
    // 设置颜色格式
    videoFormat.setInteger(MediaFormat.KEY_COLOR_FORMAT, MediaCodecInfo.CodecCapabilities.COLOR_FormatSurface);
    videoFormat.setInteger(MediaFormat.KEY_BIT_RATE, width * height * 4);
    // 设置帧率
    videoFormat.setInteger(MediaFormat.KEY_FRAME_RATE, 24);
    // 设置 I 帧的间隔时间
    videoFormat.setInteger(MediaFormat.KEY_I_FRAME_INTERVAL, 1);

    // 创建编码器
    mVideoCodec = MediaCodec.createEncoderByType(MediaFormat.MIMETYPE_VIDEO_AVC);
    mVideoCodec.configure(videoFormat, null, null, MediaCodec.CONFIGURE_FLAG_ENCODE);

    mSurface = mVideoCodec.createInputSurface();
    // 开启一个编码采集 InputSurface 上的数据，合成视频
    mVideoThread = new VideoEncoderThread(mVideoRecorderWr);
}

/**
 * 视频的渲染线程
 */
private static final class VideoRenderThread extends Thread {
    private WeakReference<BaseVideoRecorder> mVideoRecorderWr;
    private volatile boolean mShouldExit = false;
    private EglHelper mEglHelper;
    private boolean mHashCreateContext = false;
    private boolean mHashSurfaceCreated = false;
    private boolean mHashSurfaceChanged = false;
    private int mWidth;
    private int mHeight;

    public VideoRenderThread(WeakReference<BaseVideoRecorder> videoRecorderWr) {
        this.mVideoRecorderWr = videoRecorderWr;
        mEglHelper = new EglHelper();
    }

    @Override
    public void run() {

        try {
            while (true) {
                if (mShouldExit) {
                    return;
                }

                BaseVideoRecorder videoRecorder = mVideoRecorderWr.get();
                if (videoRecorder == null) {
                    return;
                }

                // 1. 创建 EGL 上下文
                if (!mHashCreateContext) {
                    mEglHelper.initCreateEgl(videoRecorder.mSurface, videoRecorder.mEglContext);
                    mHashCreateContext = true;
                }

                // 回调 Render
                GL10 gl = (GL10) mEglHelper.getEglContext().getGL();
                if (!mHashSurfaceCreated) {
                    videoRecorder.mRenderer.onSurfaceCreated(gl, mEglHelper.getEGLConfig());
                    mHashSurfaceCreated = true;
                }

                if (!mHashSurfaceChanged) {
                    videoRecorder.mRenderer.onSurfaceChanged(gl, mWidth, mHeight);
                    mHashSurfaceChanged = true;
                }

                videoRecorder.mRenderer.onDrawFrame(gl);

                mEglHelper.swapBuffers();

                // 60 fps
                Thread.sleep(16);
            }
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            onDestroy();
        }
    }

    private void onDestroy() {
        mEglHelper.destroy();
    }

    private void requestExit() {
        mShouldExit = true;
    }

    public void setSize(int width, int height) {
        this.mWidth = width;
        this.mHeight = height;
    }
}

3.视频编码录制

/**
 * 视频的编码线程
 */
private static final class VideoEncoderThread extends Thread {
    private final MediaMuxer mMediaMuxer;
    private WeakReference<BaseVideoRecorder> mVideoRecorderWr;
    private volatile boolean mShouldExit = false;
    private MediaCodec mVideoCodec;
    private MediaCodec.BufferInfo mBufferInfo;
    private int mVideoTrackIndex = -1;
    private long mVideoPts = 0;
    private final CyclicBarrier mStartCb, mDestroyCb;

    public VideoEncoderThread(WeakReference<BaseVideoRecorder> videoRecorderWr) {
        this.mVideoRecorderWr = videoRecorderWr;
        mVideoCodec = videoRecorderWr.get().mVideoCodec;
        mMediaMuxer = videoRecorderWr.get().mMediaMuxer;
        mBufferInfo = new MediaCodec.BufferInfo();
        mStartCb = videoRecorderWr.get().mStartCb;
        mDestroyCb = videoRecorderWr.get().mDestroyCb;
    }

    @Override
    public void run() {
        try {
            mVideoCodec.start();

            while (true) {
                if (mShouldExit) {
                    return;
                }

                BaseVideoRecorder videoRecorder = mVideoRecorderWr.get();
                if (videoRecorder == null) {
                    return;
                }

                // 代码先不写，先测试，从 surface 上获取数据，编码成 h264 ,通过 MediaMuxer 合成 mp4
                int outputBufferIndex = mVideoCodec.dequeueOutputBuffer(mBufferInfo, 0);
                if (outputBufferIndex == MediaCodec.INFO_OUTPUT_FORMAT_CHANGED) {
                    mVideoTrackIndex = mMediaMuxer.addTrack(mVideoCodec.getOutputFormat());
                    mMediaMuxer.start();
                    mStartCb.await();
                } else {
                    while (outputBufferIndex >= 0) {
                        // 获取数据
                        ByteBuffer outBuffer = mVideoCodec.getOutputBuffers()[outputBufferIndex];
                        outBuffer.position(mBufferInfo.offset);
                        outBuffer.limit(mBufferInfo.offset + mBufferInfo.size);

                        // 修改 pts
                        if (mVideoPts == 0) {
                            mVideoPts = mBufferInfo.presentationTimeUs;
                        }
                        mBufferInfo.presentationTimeUs -= mVideoPts;

                        // 写入数据
                        mMediaMuxer.writeSampleData(mVideoTrackIndex, outBuffer, mBufferInfo);

                        // 回调当前录制的时间
                        if (videoRecorder.mRecordListener != null) {
                            videoRecorder.mRecordListener.onTime(mBufferInfo.presentationTimeUs / 1000);
                        }

                        mVideoCodec.releaseOutputBuffer(outputBufferIndex, false);
                        outputBufferIndex = mVideoCodec.dequeueOutputBuffer(mBufferInfo, 0);
                    }
                }
            }
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            onDestroy();
        }
    }

    private void onDestroy() {
        try {
            mVideoCodec.stop();
            mVideoCodec.release();
            mDestroyCb.await();
            mMediaMuxer.stop();
            mMediaMuxer.release();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    private void requestExit() {
        mShouldExit = true;
    }
}
