OpenCV:20.二维码检测

1.二维码检测

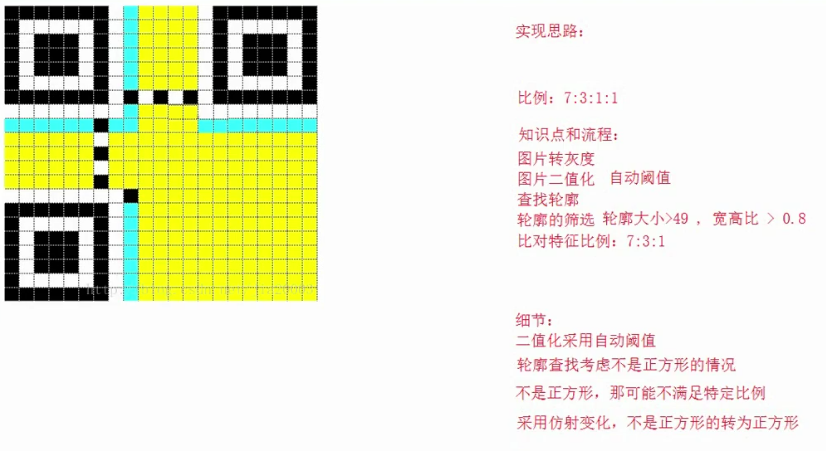

思路:

代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
// 如果是倾斜的 变换菱形 放正
Mat wrapTransfrom(const Mat &gray,const RotatedRect &rect){
int width = rect.size.width;
int height = rect.size.height;
Mat result(Size(width,height),gray.type());

// 矩阵怎么获取
vector<Point> srcPoints;
Point2f pts[4];
rect.points(pts);
for (int i = 0; i < 4; i++)
{
srcPoints.push_back(pts[i]);
}
vector<Point> dstPoints;
dstPoints.push_back(Point(0,0));
dstPoints.push_back(Point(width, 0));
dstPoints.push_back(Point(width, height));
dstPoints.push_back(Point(0, height));

Mat M = findHomography(srcPoints,dstPoints);
warpPerspective(gray,result,M,result.size());

return result;
}

bool isXCorner(const Mat &qrROI){
// 四个值
//cb:中心的黑色块数量
//lw:左边的白色块数量
//rw:右边的白色块数量
//lb:左边的黑色块数量
//rb:右边的黑色块数量
int cb = 0, lw = 0, rw = 0, lb = 0, rb = 0;

int width = qrROI.cols; //36
int height = qrROI.rows; //36
int cx = width / 2; // 18
int cy = height / 2; // 18
uchar pixels = qrROI.at<uchar>(cy, cx);
if (pixels == 255){ // 中间肯定是黑色的色块
return false;
}

// 求中心黑色
int start = 0, end = 0, offset = 0;
bool findleft = false, findright = false;
while (true){
offset++;
if (offset >= cx)
break;

// 中心点往左边扫
pixels = qrROI.at<uchar>(cy, cx - offset);
if (!findleft && pixels == 255){
start = cx - offset; // 左边白色的像素位置 12
findleft = true;
}

// 中心点往右边扫
pixels = qrROI.at<uchar>(cy, cx + offset);
if (!findright && pixels == 255){
end = cx + offset; // 右边白色的像素位置 25
findright = true;
}

if (findleft && findright)
break;
}

if (start == 0 || end == 0)
return false;
cb = end - start;
// 相间的白色
for (int col = end; col < width - 1; col++)
{
pixels = qrROI.at<uchar>(cy, col);
if (pixels == 0)
break;
rw++; // 5
}

for (int col = start; col > 0; col--)
{
pixels = qrROI.at<uchar>(cy, col);
if (pixels == 0)
break;
lw++; // 6
}
if (rw == 0 || lw == 0)
return false;



// 两边的黑色
for (int col = end+rw; col < width - 1; col++)
{
pixels = qrROI.at<uchar>(cy, col);
if (pixels == 255)
break;
rb++;
}

for (int col = start - lw; col > 0; col--)
{
pixels = qrROI.at<uchar>(cy, col);
if (pixels == 255)
break;
lb++;
}

if (rb == 0 || lb == 0)
return false;

float sum = cb + lb + rb + lw + rw;

cout << "cx = " << cx << ",,,cy =" << cy << ",,,width = " << width << ",,,height =" << height << endl;
cout << "start = " << start << ",,,end =" << end << ",,,cb =" << cb << ",,,lw = " << lw << ",,,rw =" << rw << ",,,lb =" << lb << ",,,rb =" << rb << ",,,sum =" << sum << endl;

// 求比例 3:1:1:1:1
cb = (cb / sum)*7.0 + 0.5;
lb = (lb / sum)*7.0 + 0.5;
rb = (rb / sum)*7.0 + 0.5;
lw = (lw / sum)*7.0 + 0.5;
rw = (rw / sum)*7.0 + 0.5;
cout << "start = " << start << ",,,end =" << end << ",,,cb =" << cb << ",,,lw = " << lw << ",,,rw =" << rw << ",,,lb =" << lb << ",,,rb =" << rb << ",,,sum =" << sum << endl;

if ((cb == 3 || cb == 4) && (lw == rw) && (lb == rb) && (lw == 1)){
// 3:1:1:1:1 或 4:1:1:1:1
return true;
}

return false;
}


// 最好还是加上
bool isYCorner(const Mat& qrROI){
// 统计白色像素点和黑色像素点
int bp = 0, wp = 0;
int width = qrROI.cols;
int height = qrROI.rows;
int cx = width / 2; // 3

// 中心点是黑色
int pv = 0;
for (int row = 0; row < height; row++)
{
pv = qrROI.at<uchar>(row, cx);
if (pv == 0){
bp++;
}
else if(pv == 255){
wp++;
}
}

if (bp == 0 || wp == 0)
return false;

if (wp * 2 > bp || bp > 4 * wp){
return false;
}

return true;
}


int main(){
Mat src = imread("E:/qcode1.jpg");
if (!src.data){
cout << "read error" << endl;
return -1;
}
imshow("src",src);

// 1.对图像进行灰度图处理
Mat gray;
cvtColor(src,gray,COLOR_BGR2GRAY);
// 2. 二值化处理
threshold(gray,gray,0,255,THRESH_BINARY | THRESH_OTSU);
imshow("threshold", gray);
// 轮廓发现
vector<vector<Point>> contours;
findContours(gray,contours,RETR_LIST,CHAIN_APPROX_SIMPLE);

for (int i = 0; i < contours.size(); i++)
{
// 过滤面积
double area = contourArea(contours[i]);
if (area < 49)
continue;

// 过滤宽高比和宽高大小
RotatedRect rRect = minAreaRect(contours[i]);
float w = rRect.size.width;
float h = rRect.size.height;
float ratio = min(w,h) / max(w,h);
if (ratio > 0.9 && w < gray.cols / 2 && h < gray.rows / 2){
// 去分析,找到满足宽高比的,满足宽高大小的
Mat qrROI = wrapTransfrom(gray, rRect);
if (isYCorner(qrROI) && isXCorner(qrROI)){
drawContours(src, contours, i, Scalar(0, 0, 255), 4);
}
}
}

imshow("dstsrc",src);

waitKey(0);
return 0;
}
